The Worldsensing CMT Edge API connection supports the connection and transfer of data from CMT Edge into the sensemetrics platform. The following Worldsensing Edge devices are supported:

• Worldsensing Analog 4-channel LS-G6-ANALOG-4
• Worldsensing Digital Logger LS-G6-DIG-2
• Worldsensing Worldsensing Laser Distance Meter LS-G6-LASER
• Worldsensing Tilt Meter LS-G6-LAS-TIL90
• Worldsensing Tilt Meter LS-G6-TIL90-X
• Worldsensing Tilt Meter LS-G6-TIL90-I
• Worldsensing Tilt Meter LS-G6-TIL90-IE
• Worldsensing Tilt Meter LS-G6-TIL90-XE
• Worldsensing Vibrating Wire 1-Channel LS-GG-VW-1M
• Worldsensing Vibrating Wire 5-Channel LS-G6-VW

This article will guide the user in setting up the Worldsensing Edge to sensemetrics API connection.

CMT Edge Setup

Worldsensing and Loadsensing device configuration is performed through the CMT Edge network management software.

Set up all projects and devices within the CMT Edge application. Please contact Worldsensing support with any questions regarding CMT Edge app login or Gateway and Device configuration.

Once configured, the API connection is ready to be set up in sensemetrics.

sensemetrics API Connection

1. Within the application, begin by navigating to the Connectivity Module.

2. Click on the "+Connection" icon.

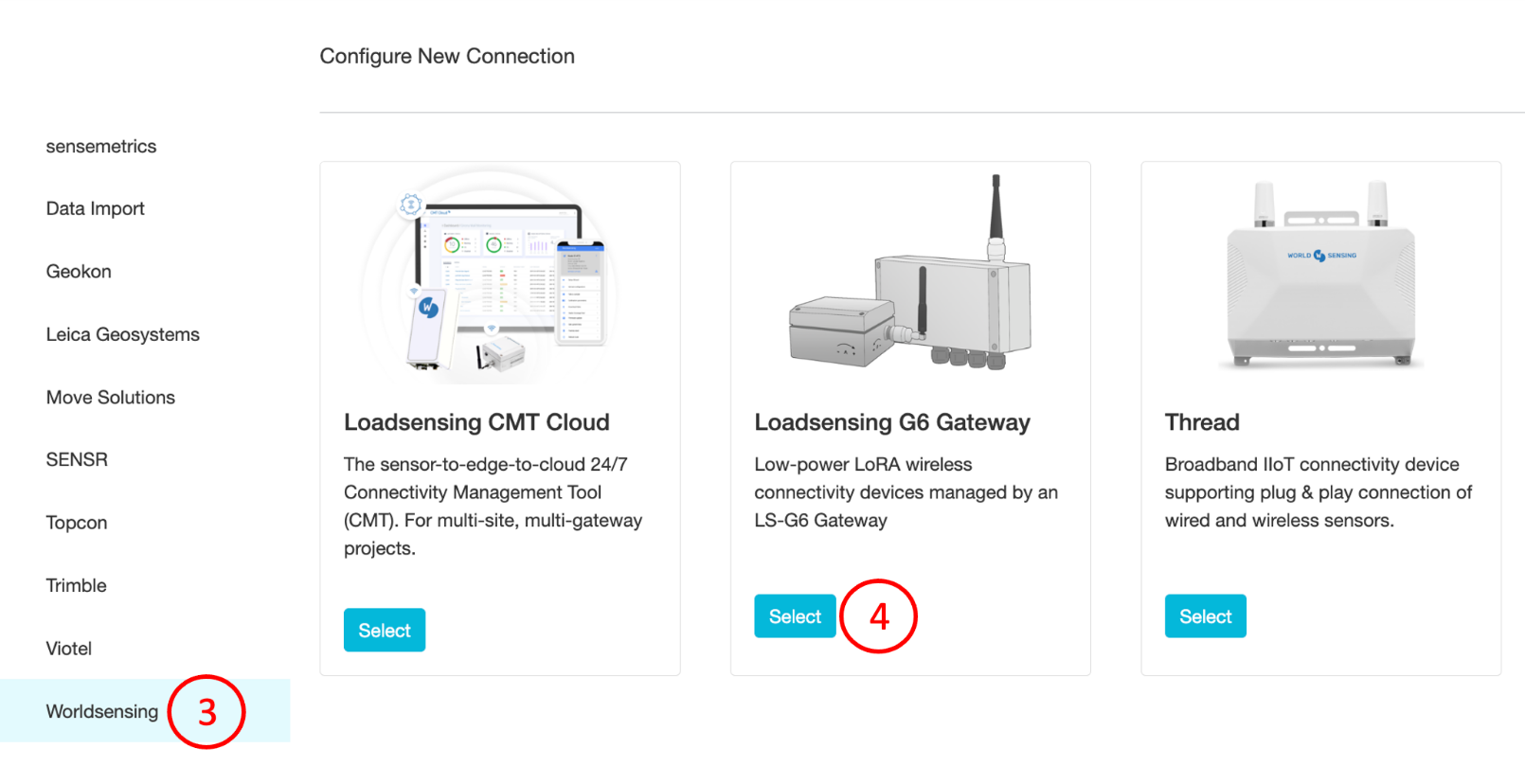

3. Select Worldsensing from the available Connections list on the left sidebar.

4. Click the "Select" icon on the Loadsensing G6 Gateway cloud tile.

5. Network ID- Input the network ID found on the Networks page (image 1) or on Status page (image 2) of the CMT Edge application.

6. Gateway ID- Input the Gateway ID, which can be found in the URL or on the Status page of the CMT Edge application.

7. Username- Input your CMT Edge username used for logging into the application.

8. Password- Input your CMT Edge password used for logging into the application.

Click "Next" once all information has been input.

9. The next page will be the Edit Configuration page for the connection. Standard configurations are available. After configuration changes have been made, click "Next".

Once complete, Devices and Sensors will begin populating within the Connectivity module and observations will begin streaming from CMT Edge.
